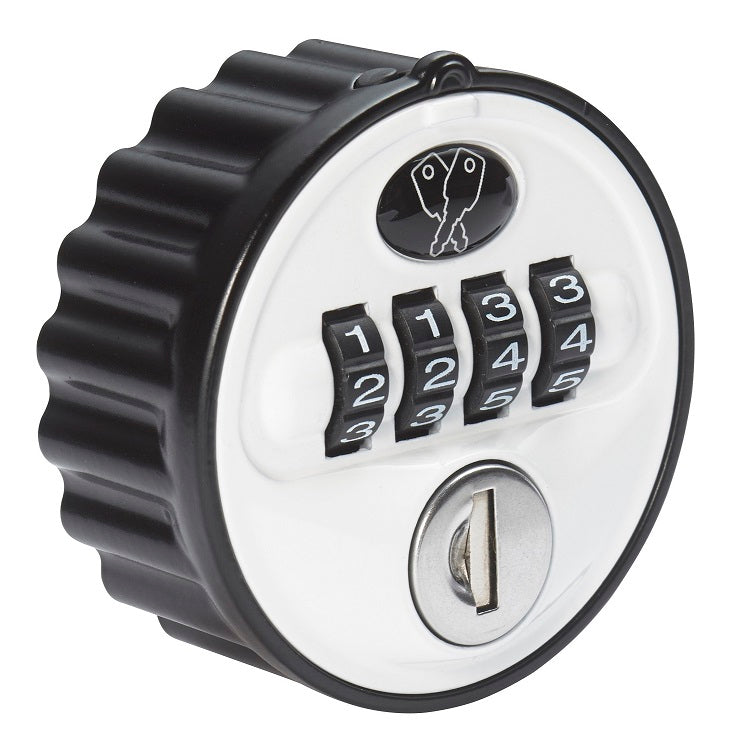

L&F 4 Dial Mechanical 2800 Locker Lock

This versatile combination lock is available in both public mode (shared use) and private mode (dedicated use). Users can easily set and change their own PIN in private mode. Featuring a patented code finder for emergency access, it ensures reliability even if codes are lost. The optional twist-resist feature adds extra security by preventing tampering and protecting door surfaces. Designed for durability and compatibility with most locker and furniture door types, this lock suits a wide range of environments including offices, gyms, schools, and personal storage areas — combining strength, ease of use, and advanced functionality for everyday security.

• 4-Wheel Combination for 10,000 User Codes
• Patented Code Finder Function
• Code Changing Function
• Zinc Die-Cast Construction
• Public and Private Mode Versions Available
• Left and Right-Hand Versions Available

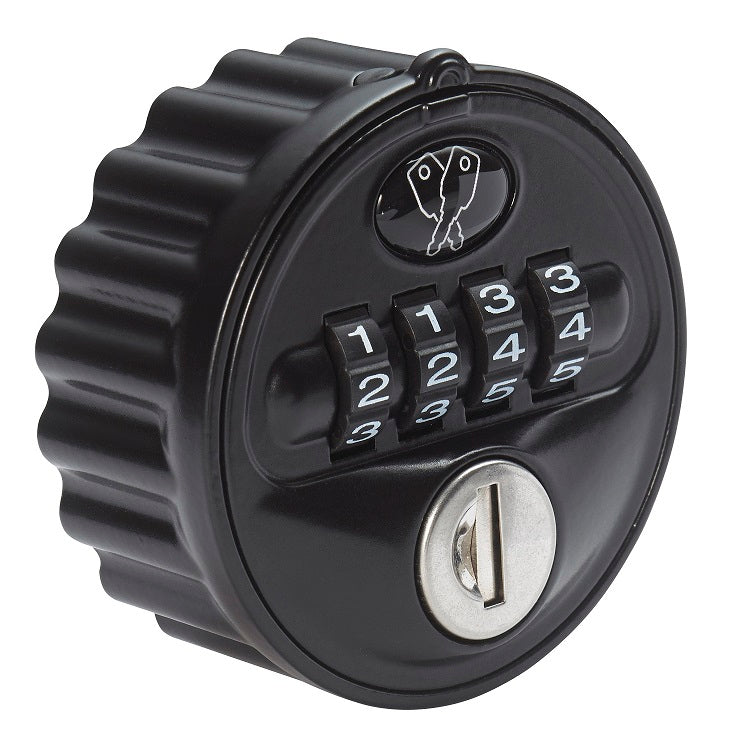

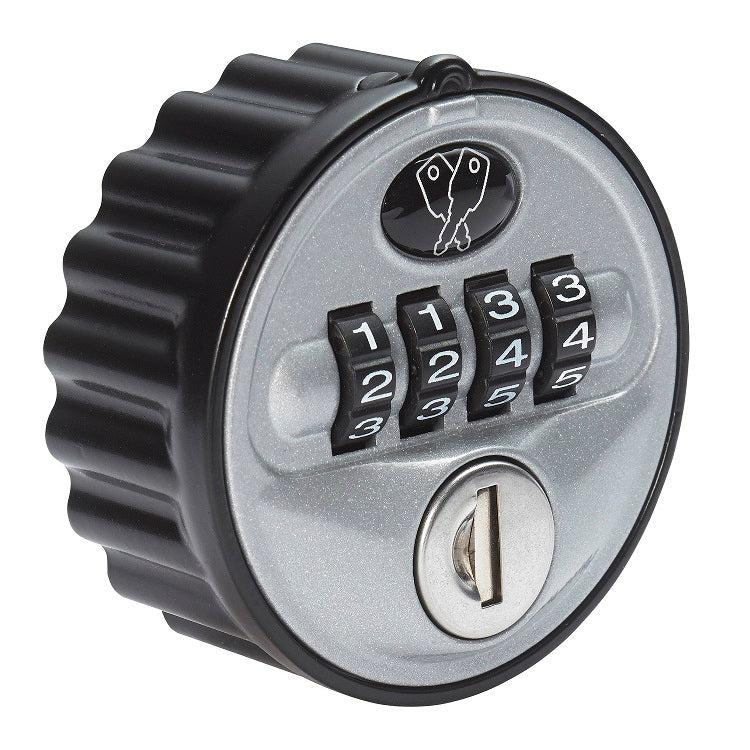

• Available in 3 Standard Powder Coat Finishes (Black, White and Silver)
• Customisable Logo Area for Customer Logo Application or Sequential Numbers
• Manufactured to Fit Standard Industry Footprint 16mm x 19mm
• Diameter: 56 x 28mm (Protrudes from Door Frame)
• Nut Fixing: 3/4″ – 27 UN x 20mm Long (15.9mm A/F)
• Cam Fixing: 8mm Sq. with M4 Thread

• Product Code: 2800
• Series: E0453
• Code Combinations: 10,000
• Body Length: 20mm
• Body Width: 56mm
• Body Depth: 28mm
• Cam Fixing: Screw
• Housing Fixing: Nut Fixing
• Lock Feature: Standard
• Cam Bar: 50mm with 5mm Crank
